Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur manuel - 8 a 12po - bâti ouvert - expulsion manchon
Productivity

PLAN MAINTENANCE IN MINUTES, NOT HOURS. Sleeve replacements can be done in 30 minutes or less. Therefore, maintenance operations are up to six times faster than our competition. You can perform maintenance on several valves during the same shutdown time, and even plan your maintenance operations. This means no unplanned stoppages.

VALVE OFHP FLASH POINTS 07.2
Safety

ELIMINATE SAFETY RISKS FROM THE EQUATION. You can count on our value-added safety features, but the true advantages lie in what you can eliminate. By removing heavy loads, along with risk-bearing and physically demanding movements, you lower the human and financial costs linked to industrial accidents.

Manchon haute performance (SLHP)
Our sleeves

Full-bore sleeve is the core pieces of our valves, and the only part that come into contact with media. Thanks to their reinforced design, OXO Valve sleeve provide above-average resistance to wear, corrosion, and chemicals. Their superior strength prolongs the life cycle of valves, with fewer maintenance operations required.

VALVE OFHP FLASH POINTS 02.2
Return on investment

ELIMINATE 90% OF MAINTENANCE. End to end, you limit shutdown times, up to 90% of maintenance, as well as the amount of resources required for those operations. You also eliminate the need to transport, disassemble and reassemble valves, and you can reduce valve inventories. You soon reap the benefits, both in terms of time and money.

Valve à manchon – Bâti ouvert haute performance (OFHP) - barre d'expulsion
Revolution

OXO Valve’s patented frame release system is the first and only technology worldwide that makes it possible to replace sleeve without having to remove the valve on pipeline. Imagine the productivity and safety gains! Now is the time to take full advantage of this outstanding product.

VALVE OFHP FLASH POINTS 06
Safety at heart

SAFER-THAN-EVER PROCEDURES. OXO’s technology opens the way to a new industrial valve maintenance approach. The entire sleeve replacement procedure has now become predictable, easy, and fast. The valves also include unique safety features that keep the upper parts of the frame solidly locked in place in both open and closed positions.

VALVE OFHP FLASH POINTS 09.3
Simplicity = Productivity

EVERY MOVE MADE SIMPLER, EVERY OPERATION MADE EASIER. Without ever neglecting operating performance, we have redefined what productive industrial valves should be during maintenance operations – as much in terms of form and structure, as functionality. From A to Z, we have repeated the sleeve replacement operation hundreds of times in order to make it simpler, to the point of limiting it to a few basic moves.

Vclsnap 2022 09 26 Video Produit ENcompress (1)

QUALITY WITHOUT COMPROMISE

The OXO Valve design is meant to significantly reduce the maintenance costs of industrial valves. However, the quality of our manufacturing process had to mirror this philosophy. For us, this means ultra-efficient valves for the most demanding industrial uses, along with durability standards that eliminate unplanned shutdowns.

Strengths up to 2.5 higher than the industry’s most demanding standards.

Quality control over the entire production line, from foundry to final assembly.

All valves are inspected and tested, without exception, before they are delivered to customers.

Stringent traceability system that guarantees full compliance with manufacturing processes.

Specifications

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur manuel
Manual

Dimensions

VALVE OFHP MONTAGE DIRECT SKETCH DIMENSION

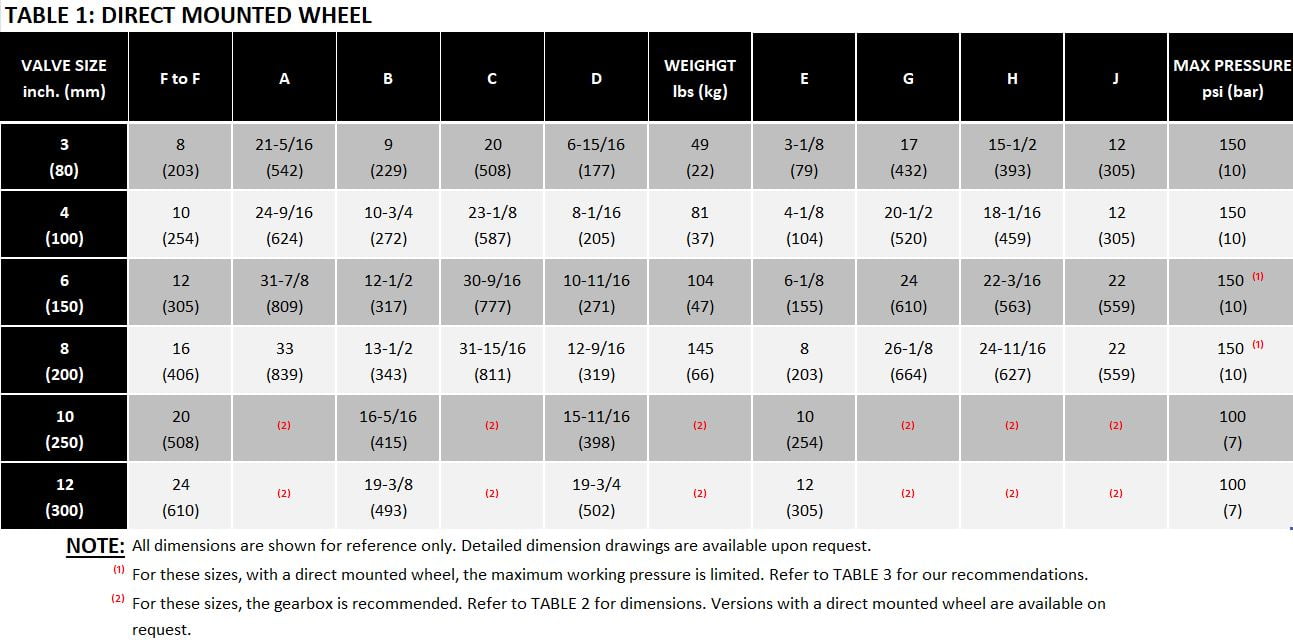

OFHP - DIM. VOLANT MONT. DIRECT - EN
VALVE OFHP RÉDUCTEUR SKETCH DIMENSION

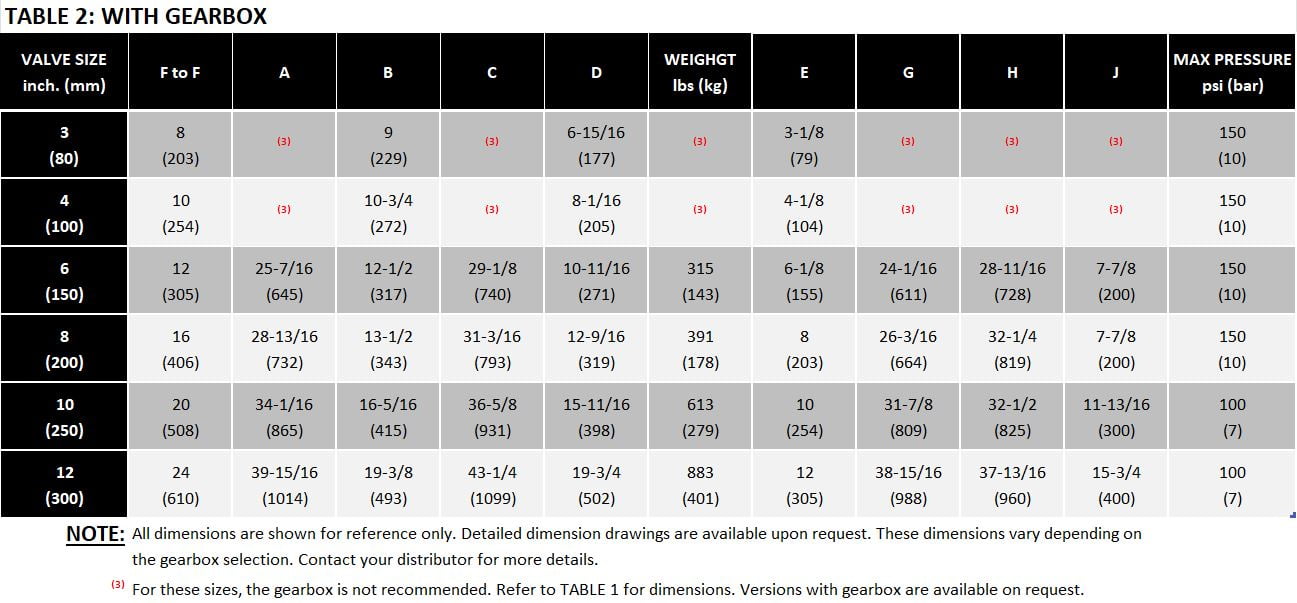

OFHP - DIM. RÉDUCTEUR - EN

Our Recommendations

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur manuel
Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur manuel avec réducteur

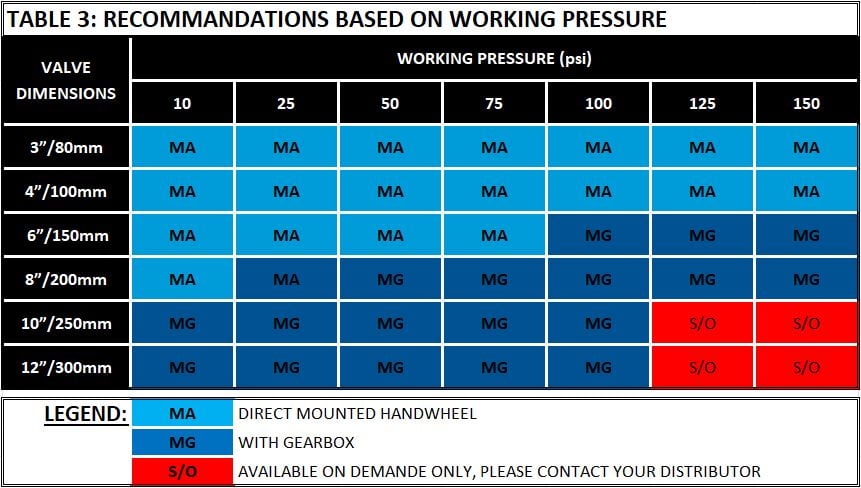

OFHP - PRESS. SERVICE MANUEL_RÉDUCTEUR - EN

ACCESSORIES

  • Chain wheel
  • Floor extension
  • Protective cover
  • “CERAKOTE” surface treatment
  • Other accessories available upon request

OPTIONS

  • Mechanical limit switch
  • Mechanical position indicator
  • *Proximity switch
  • *Smart transmitter
  • Other equipment available upon request

GEARBOX MANUFACTURERS

  • Auma
  • Rotork
  • Sambo
  • Other brands available upon request

BACK      OUR SLEEVES

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur pneumatique
Pneumatic

Dimensions

VALVE OFHP PNEUMATIQUE SKETCH DIMENSION

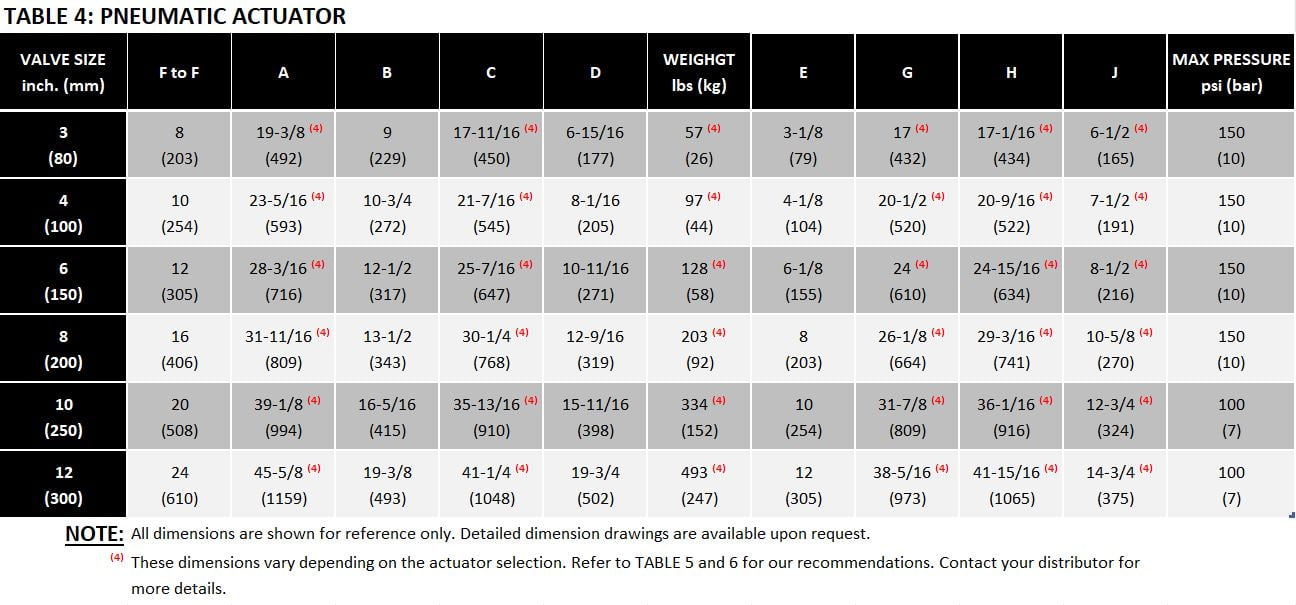

OFHP - DIM. PNEUMATIQUE - EN

Our Recommendations

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur pneumatique

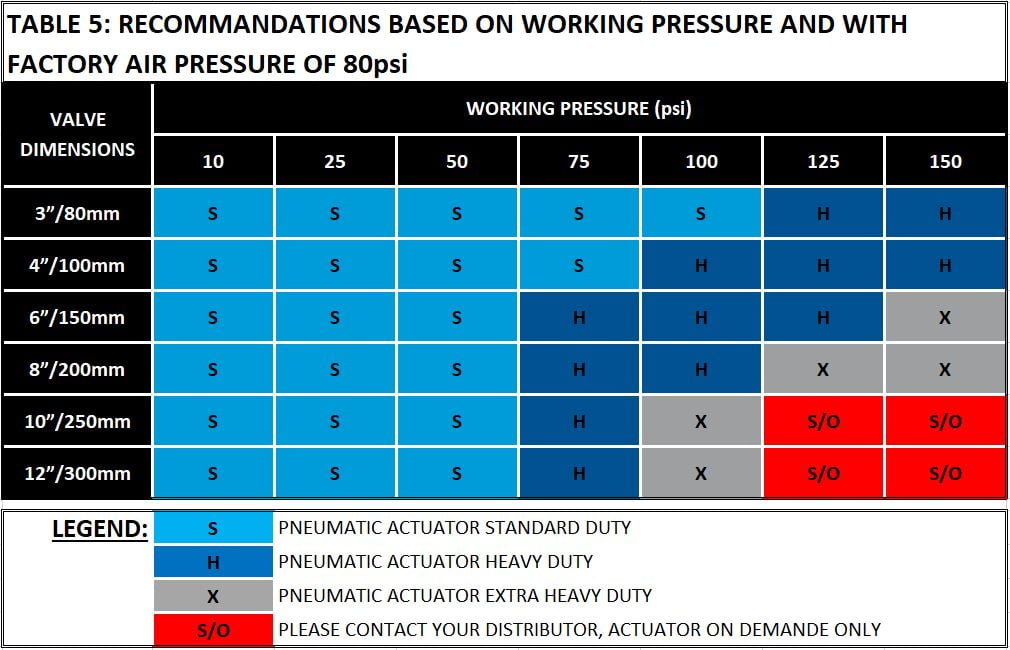

OFHP - PRESS. SERVICE PNEUM. 8Opsi - EN

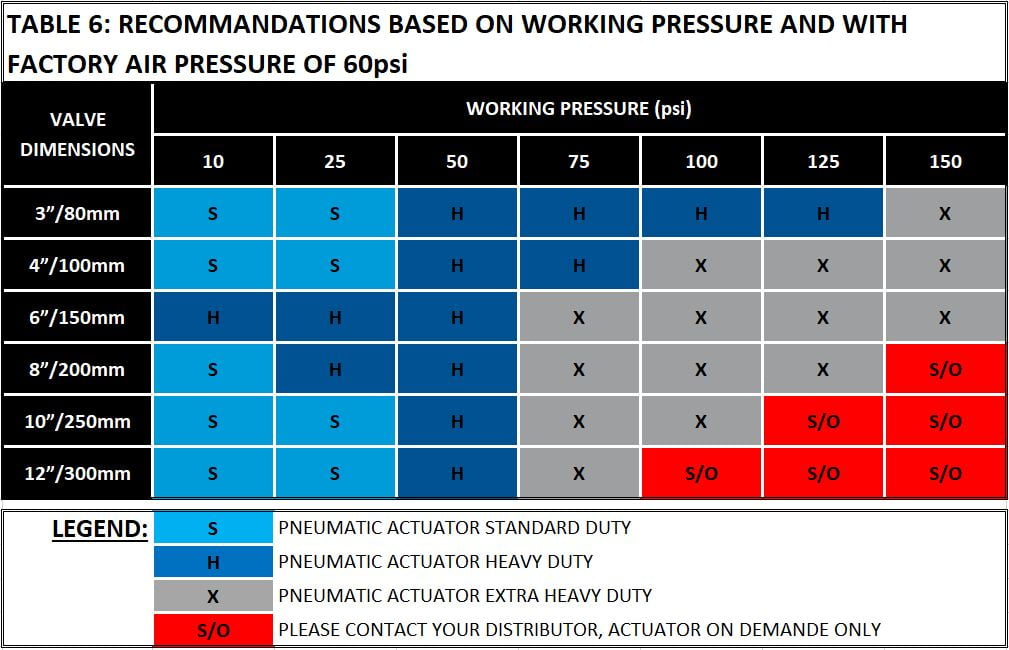

OFHP - PRESS. SERVICE PNEUM. 6Opsi - EN

ACCESSORIES

  • Floor extension
  • Protective cover
  • “CERAKOTE” surface treatment
  • Other accessories available upon request

OPTIONS

  • Pneumatic positioner
  • Electro-pneumatic positioner
  • Smart positioner
  • Position switch
  • Proximity switch
  • Solenoid
  • Position indicator
  • Electro-pneumatic converter
  • Pressure regulator
  • Smart transmitter
  • Electro-pneumatic transmitter
  • Other equipment available upon request

PNEUMATIC ACTUATOR MANUFACTURERS

RDC Control

  • Other brands available upon request

BACK     OUR SLEEVEs

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur électrique
Electric

Dimensions

VALVE OFHP ÉLECTRIQUE SKETCH DIMENSION

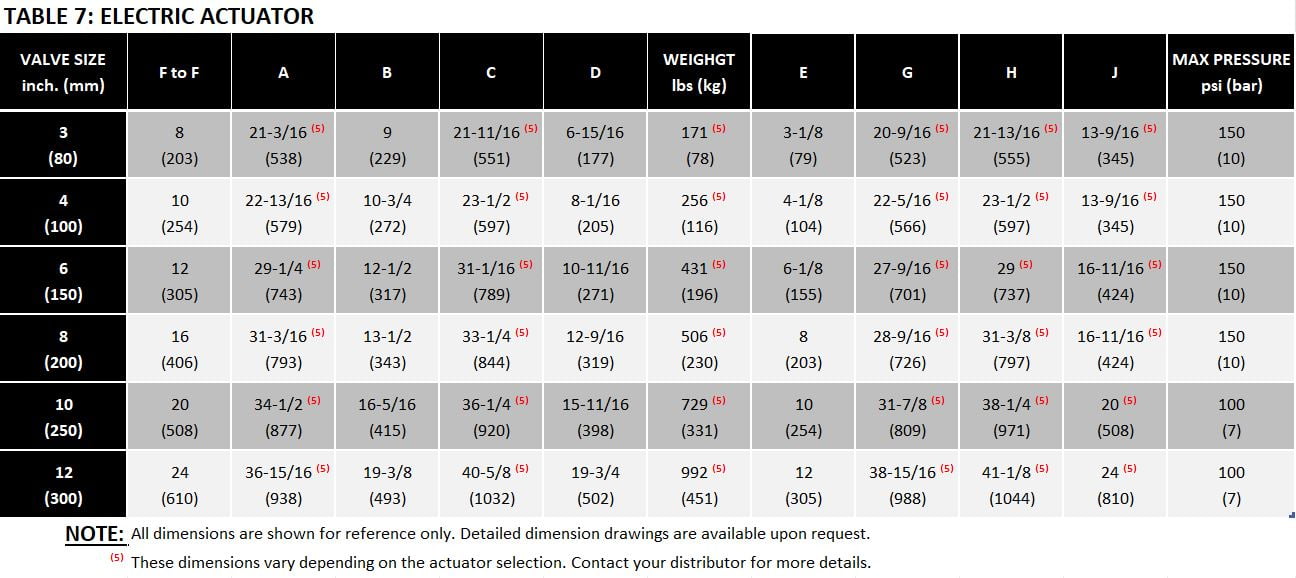

OFHP - DIM. ÉLECTRIQUE - EN
Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur électrique

ACCESSORIES

  • Floor extension
  • Protective cover
  • “CERAKOTE” surface treatment
  • Other accessories available upon request

OPTIONS

  • Pneumatic positioner
  • Electro-pneumatic positioner
  • Smart positioner
  • Position switch
  • Proximity switch
  • Solenoid
  • Position indicator
  • Electro-pneumatic converter
  • Pressure regulator
  • Smart transmitter
  • Electro-pneumatic transmitter
  • Other equipment available upon request

ELECTRIC ACTUATOR MANUFACTURERS

  • Auma
  • Rotork
  • Limitorque
  • Other brands available upon request

BACK     Our sleeves

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur hydraulique
Hydraulic

*** Option upon request only ***

Contact your distributor for further information











Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur hydraulique

ACCESSORIES

  • Floor extension
  • Protective cover
  • “CERAKOTE” surface treatment

Other accessories available upon request

OPTIONS

  • Pneumatic positioner
  • Electro-pneumatic positioner
  • Smart positioner
  • Position switch
  • Proximity switch
  • Solenoid
  • Position indicator
  • Electro-pneumatic converter
  • Pressure regulator
  • Smart transmitter
  • Electro-pneumatic transmitter
  • Other equipment available upon request

HYDRAULIC ACTUATOR MANUFACTURERS

  • Upon request…

BACK    our sleeves

General informations
Frame materials

Cast aluminum

Sizes

NPS

3″/ 4″/ 6” / 8” / 10” / 12”

DN

80 mm / 100 mm / 150 mm / 200 mm / 250 mm / 300 mm

Actuator types

Direct mounted handwheel

With gearbox

Pneumatic

Electric

Hydraulic

Frame type

Open frame

Pressure category

ANSI 150 psi

DIN 10 bars

OFHP – TECHNICAL DATA

Discover our sleeves

Sketch Fermeture BCD EN
Features

The OFHP series has an open frame structure that provides good visibility of the sleeve and the valve closure system at all times. Our system provides full-bore to media and is 100% drip tight when the valve is closed. Our valves are designed for extreme conditions, the sleeve is the only part in contact with the media. Whether your industrial operations involve aggressive slurries, abrasive substances, powders or other products, our valves and sleeves are up to the task.



Our valves are equipped with the type of actuator your need: pneumatic, electric, direct-mount wheel, reduction system, or hydraulic.



OXO Valve also provides custom flowrate solutions to meet the most challenging needs. Contact our sales service for further information.

Advantages

Valve à manchon – Bâti ouvert haute performance (OFHP) - actionneur manuel - système de sécurité à amortissement
  • Significant productivity and safety benefits.
  • Lowest maintenance cost on the market.
  • Maintenance 6 times faster than the competition.
  • Extremely safe valves requiring no adjustments.
  • Maintenance performed directly on the pipe system.
  • Durable design up to 2.5 times stronger than the highest industry standards.
  • Ultra-durable sleeves with no unplanned production shutdowns.
  • Fully tight closing system with no flowrate restrictions.
  • Sleeve design for full-bore flow.
  • Ultra-efficient valves – optimized, innovative and cutting-edge design.
