Specifications

GENERALES Informations

Available material:

SBR 45 BLACK (Styrene Butadiene Rubber)

EPDM/ NSF61 (Ethylene Propylene)

CR (Neoprene/ Chloroprene Rubber)*

NBR (BUNA-N/ Nitrile rubber)*

NR (Natural Rubber)*

FKM (Fluocarbon Viton®)*

Note *: Materials available on request only

Sizes:

NPS/DN

2″/ 50mm

3″/ 80mm

4″/ 100mm

6”/ 150mm

8”/ 200mm

10”/ 250mm

12”/ 300mm

14″/350mm

16″/400mm

Operating pressure:

ANSI 150 psi/ DIN 10 bars

Operating temperature:

-40°C à 160°C / -40°F à 248°F*

Note*: Temperatures vary by sleeve material, please consult manufacturer for more information.

Use With:

OFHP serie – Open Frame High Performance

OFGA serie – Open Frame General Application

CFHP serie – Close Frame High Performance

slHP – Technical sheet

Discover our Valves

Advantages

Valve à manchon – Bâti ouvert haute performance (OFHP) - expulsion manchon
  • Maintenance 6 times faster than the competition.
  • Ultra-durable sleeves with no unplanned production shutdowns.
  • Maintenance performed directly on the pipe system.
  • Longer maintenance intervals.
  • Sleeve design for full-bore flow.
  • Only the sleeve is in conctact with the media.
  • Significant productivity and safety benefits.
  • Causes no pressure drop.

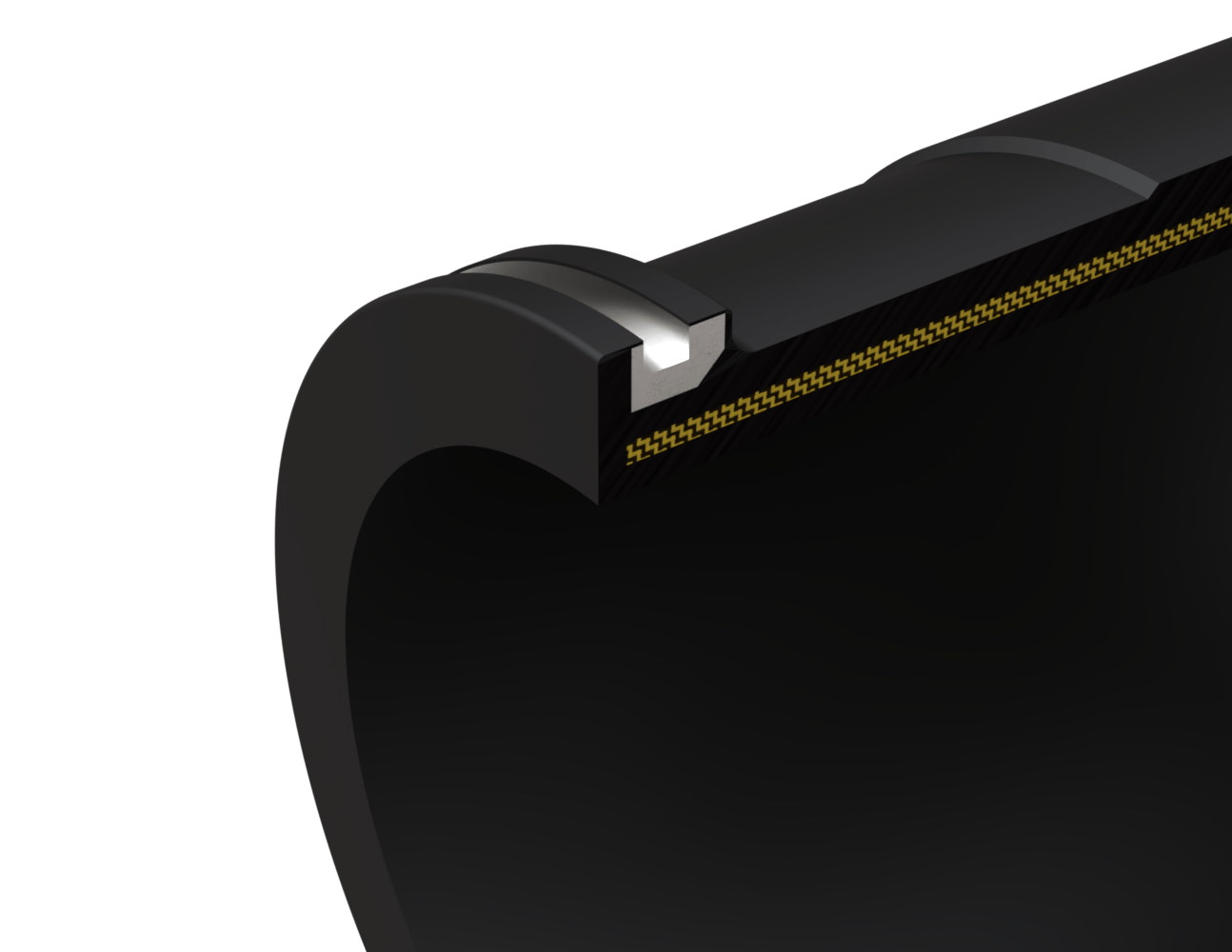

  • integrated flanges sealing.
